One1ros Posted January 29, 2012 Share Posted January 29, 2012 Bizarre choice the 90 rotated motherboard with ports downward... this mod arouses even more my curiosity! Quote Link to comment Share on other sites More sharing options...
Angel OD Posted January 29, 2012 Author Share Posted January 29, 2012 nice nice nice , another pics Thanks a lot! Bizarre choice the 90 rotated motherboard with ports downward... this mod arouses even more my curiosity! Thanks man. I just wanted to do something a bit out of the normal on this case! I just hope the result will be as great as the idea seems to be! Quote Link to comment Share on other sites More sharing options...
One1ros Posted January 30, 2012 Share Posted January 30, 2012 Thanks man. I just wanted to do something a bit out of the normal on this case! I just hope the result will be as great as the idea seems to be! It will surely be! Quote Link to comment Share on other sites More sharing options...
Angel OD Posted January 31, 2012 Author Share Posted January 31, 2012 It will surely be! I really really hope you are right! I'll do my best, that's for sure! A small update on the fans! I started out with 2 of the Phobya ones and that was easy peacy. I then went on the the first Gelid. I started out in the lathe, and all of a sudden I heard a cracking noise. The fan housing stopped moving but the lathe kept going... I didn't use a chuck so I new the risk was there, and I therefore did it quite carefully. After further inspection, I found out the housing was not the same... :wallbash: The anoying thing is that one of the Gelid's ARE identical with the Phobya, but the second was not... And that's the one I was working on... It's not cast in a single piece as such, but has "inserts" in the corners: Actually the design of the back is not the same either, but I just didn't notice that! This quite sucks, but for now I have 2 red and 2 blue. If I need more I'll see what can be done. I'm contemplating writing Gelid and ask if it's a mistake or if they changed the design, and I just got one of each. I'm gonna tell them that I may have voided the warranty a bit though... :lol: I'm gonna take a break from modding this week, but I'll be back next week with more updates! Quote Link to comment Share on other sites More sharing options...
tom1 Posted January 31, 2012 Share Posted January 31, 2012 really curious to see what will come out Quote Link to comment Share on other sites More sharing options...
masbuskado Posted February 13, 2012 Share Posted February 13, 2012 Nice looking project... about your mobo tray config... I manage to do the same thing in an ongoing project... here is the link Un1ty that will give you some ideas... my case was tiny compare to this one... but the main key is to relocate the PSU... cheers! Quote Link to comment Share on other sites More sharing options...
Angel OD Posted February 13, 2012 Author Share Posted February 13, 2012 Nice looking project... about your mobo tray config... I manage to do the same thing in an ongoing project... here is the link Un1ty that will give you some ideas... my case was tiny compare to this one... but the main key is to relocate the PSU... cheers! Thanks a lot! I'll be sure to take a good look at it! I don't need to relocate the PSU though, I have enough room! Quote Link to comment Share on other sites More sharing options...
Angel OD Posted February 13, 2012 Author Share Posted February 13, 2012 On with a small update. I finally got around to doing the first part of the back of the case. A couple og pieces of .5mm steel: Fast spot-welded (Don't hate on it, it's good enough and I'll smooth it out. I never weld anymore! :lol: ) Now it's time for some bondo and a paint job, then the back should be done! A little envelope of happiness arrived from MDPC: Not much, but yet a small update! Quote Link to comment Share on other sites More sharing options...
One1ros Posted February 13, 2012 Share Posted February 13, 2012 Moarrrrr! Quote Link to comment Share on other sites More sharing options...
tom1 Posted February 14, 2012 Share Posted February 14, 2012 sleeveeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee Quote Link to comment Share on other sites More sharing options...
Angel OD Posted February 14, 2012 Author Share Posted February 14, 2012 Moarrrrr! I do what I can, but I'm just so damn busy at the moment! sleeveeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee Yup, and the best kind as well! It's gonna be some time before I start sleeving though! Quote Link to comment Share on other sites More sharing options...

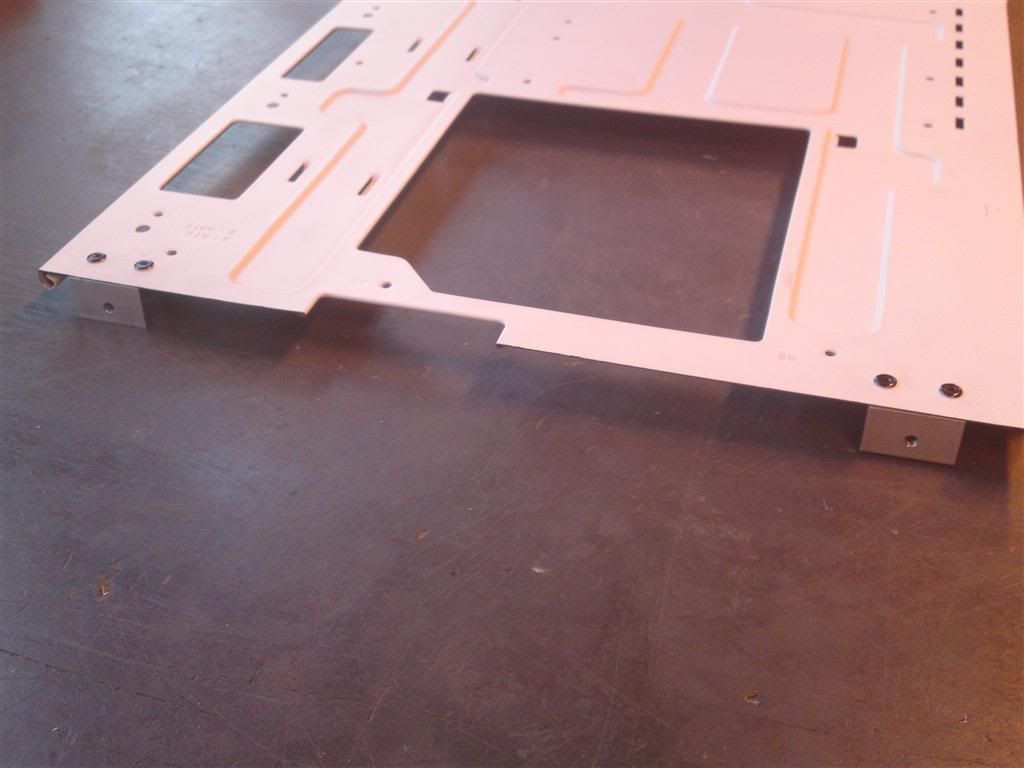

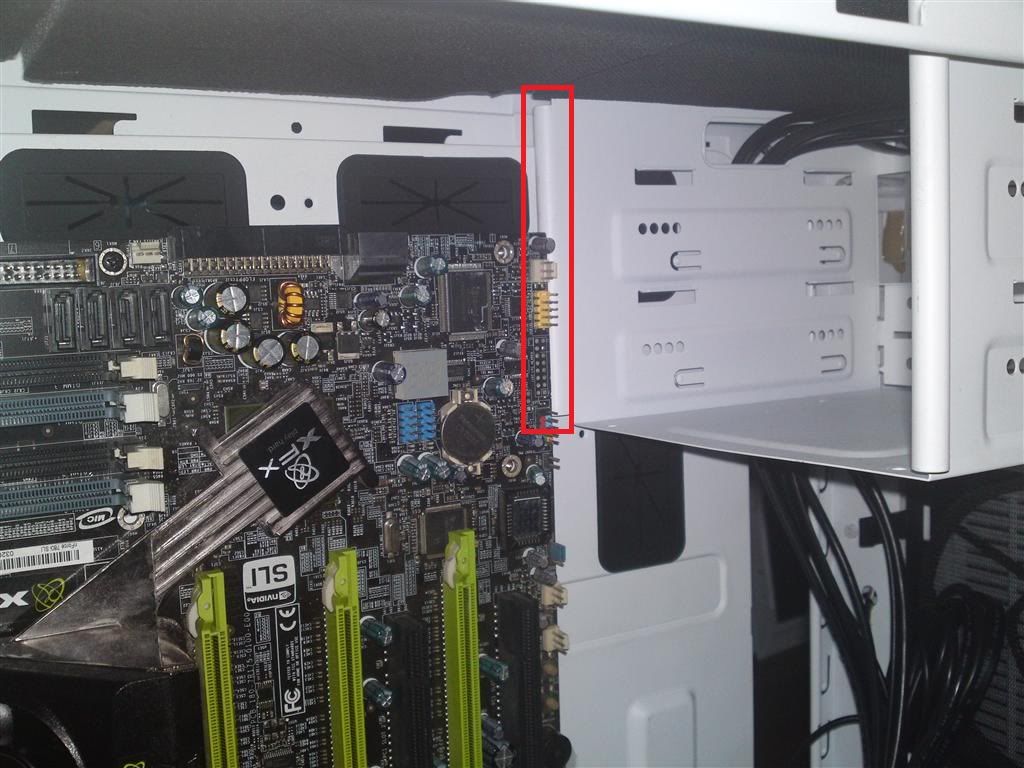

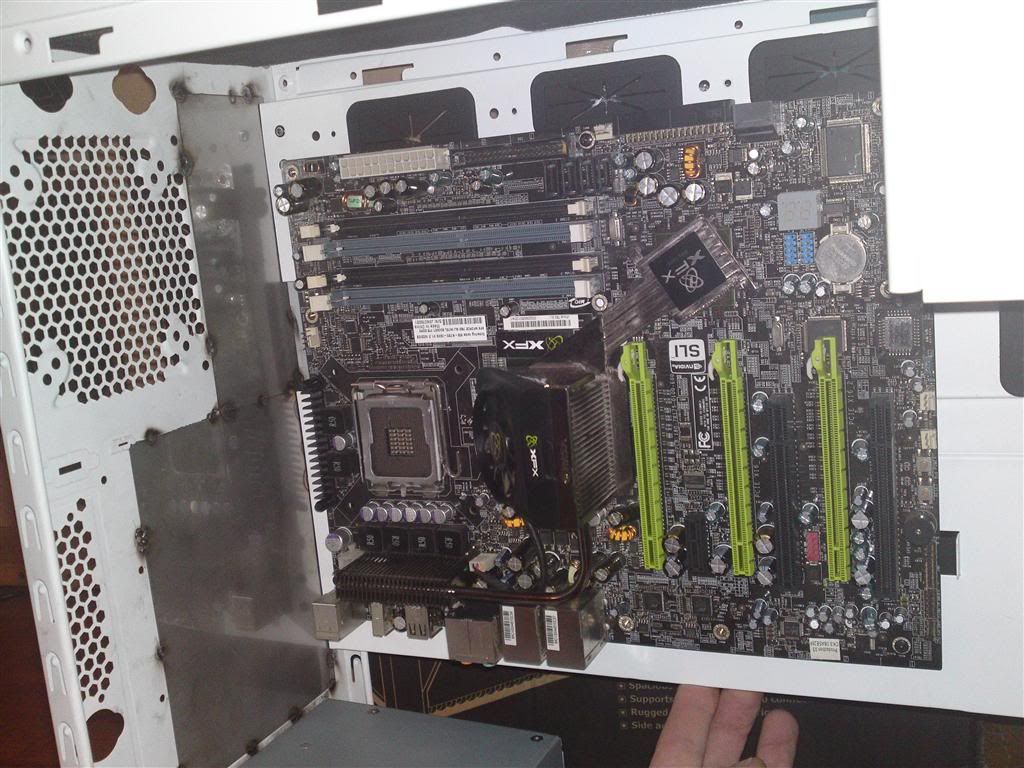

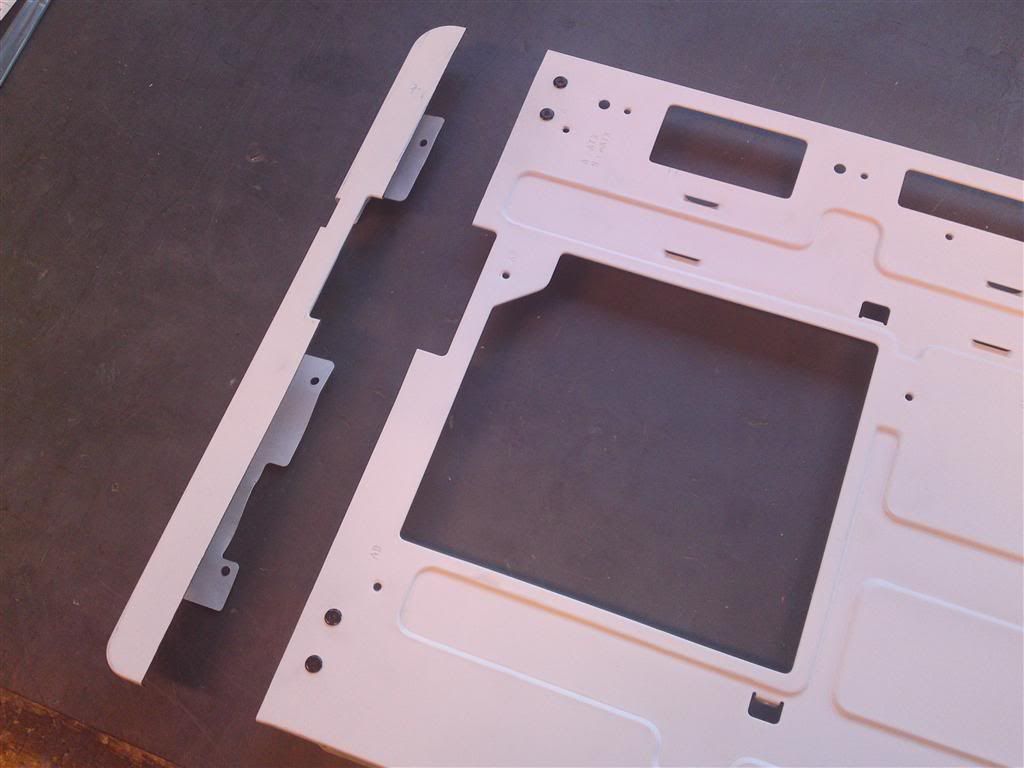

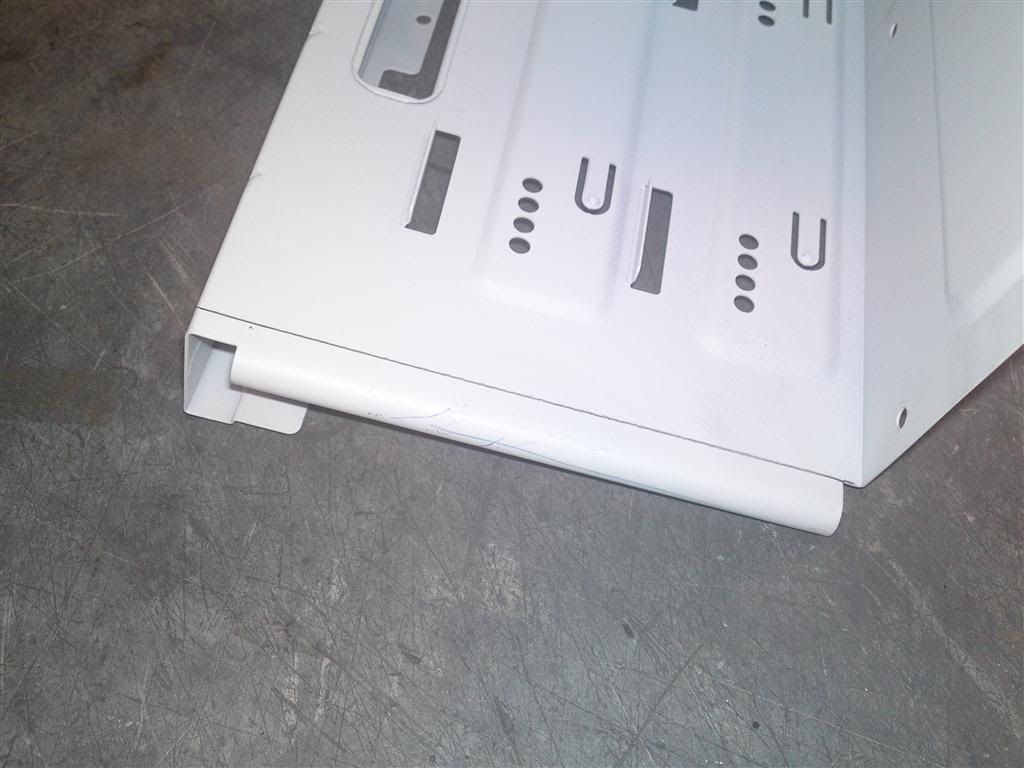

Angel OD Posted February 15, 2012 Author Share Posted February 15, 2012 Another small update for you today guys. It's slow progress but I've never really modded a case before, so I'm taking it in little steps! I don't know if anyone has anything bad to say about the Fractal cases, but one thing I presume I will never hear is "They used to few rivets!" :lol: On with it! I cut a bit off of the side of the MOBO backplate to make room for it: Mounted at couple of pieces of aluminum angle. It has to be remounted somehow: Testfit seems promising: Unfortunately I have to remove a bit of the dvd-cage. (Beautifuly marked in red) So that's it for now. I'll get the cage done tomorrow, and then it's on to the next thing! Quote Link to comment Share on other sites More sharing options...
One1ros Posted February 16, 2012 Share Posted February 16, 2012 I think you have also to make new hole for cable management... Anyway, as I presumed this rotated motherboard tray is e vary challenging and interesting feature. Quote Link to comment Share on other sites More sharing options...
Angel OD Posted February 16, 2012 Author Share Posted February 16, 2012 I think you have also to make new hole for cable management...Anyway, as I presumed this rotated motherboard tray is e vary challenging and interesting feature. I don't know where that should be needed, but you may have spotted something that I have missed! Yeah, it is quite challenging! I kinda like it! I feel the result might actually turn out the way I want it to! Quote Link to comment Share on other sites More sharing options...

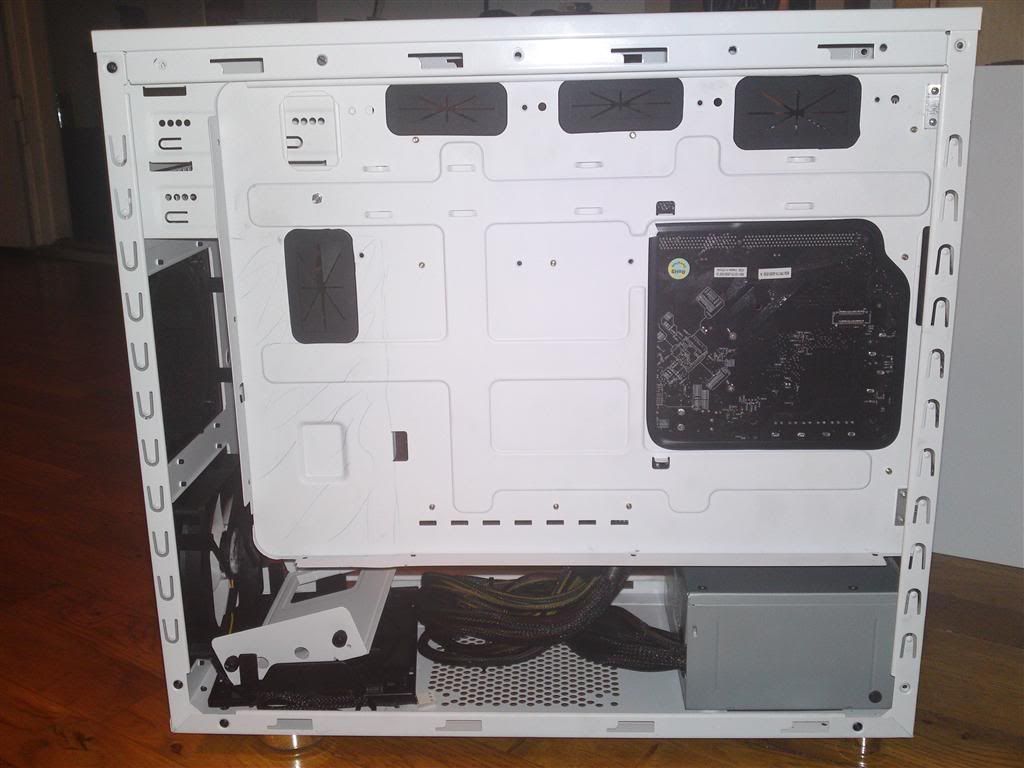

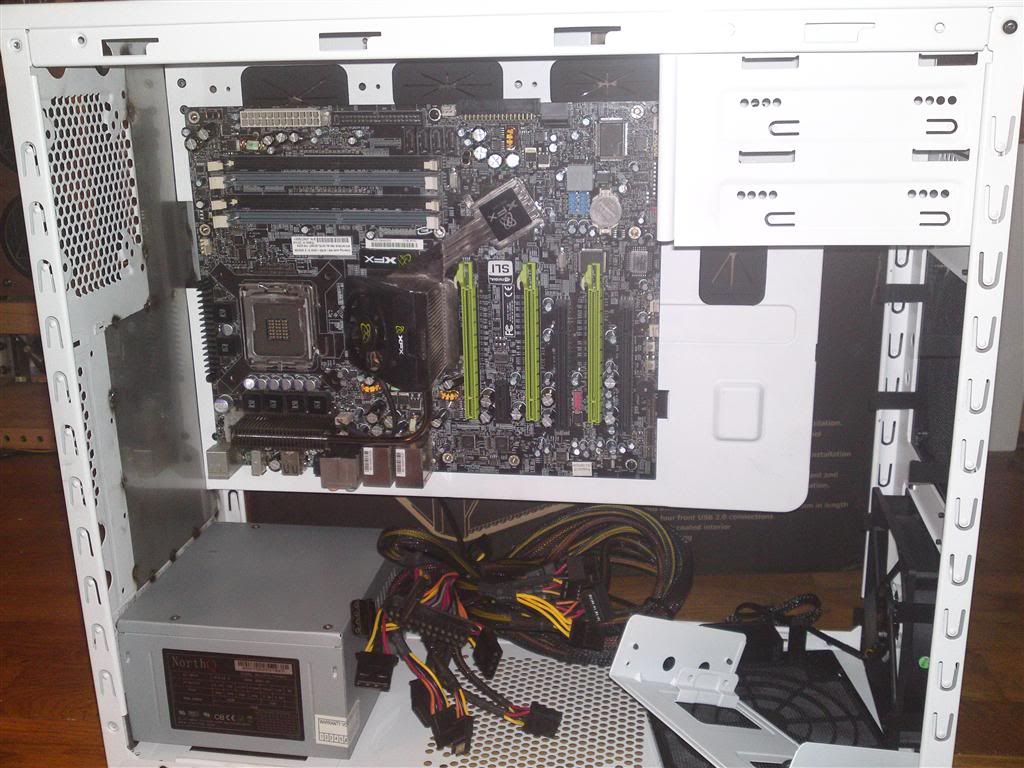

Angel OD Posted February 16, 2012 Author Share Posted February 16, 2012 Yet another small update! I cut the drive bay: And then mounted it in it's original place with screws for now. I got the damn moboplate in and mounted with 3 screws for now. No need to put in rivets when I'm pretty sure I'll have to pull it several more times! It's a small thing, but it finally feels like I made some progress! Now I can get on with thinking up how the internals will look in the end! From the back: Now I need to cut a bit more off of it, that should be done tomorrow! C ya then my fellow modders! Quote Link to comment Share on other sites More sharing options...
One1ros Posted February 17, 2012 Share Posted February 17, 2012 I don't know where that should be needed, but you may have spotted something that I have missed! I was thinking to CPU power and to external peripherals (as now you have them in the bottom of the motherboard tray). But maybe you were thinking to another solution...I'll be waiting for it. Quote Link to comment Share on other sites More sharing options...
principino1984 Posted February 17, 2012 Share Posted February 17, 2012 I'm amazed about all the thing you'r doin man... it's just.. oh crap.. just unbelievable! I just love the WB you made! Wow congrats mate! I'll keep an eye on this mod for sure! Marco Quote Link to comment Share on other sites More sharing options...
Angel OD Posted February 17, 2012 Author Share Posted February 17, 2012 I was thinking to CPU power and to external peripherals (as now you have them in the bottom of the motherboard tray). But maybe you were thinking to another solution...I'll be waiting for it. You are very right, and I stand corrected! I'll have to find a way to get the 8 pin in there somehow! I'm amazed about all the thing you'r doin man... it's just.. oh crap.. just unbelievable! I just love the WB you made! Wow congrats mate! I'll keep an eye on this mod for sure! Marco Thank you very much! I love to read posts like this, that really is the reason why I keep doing this! Quote Link to comment Share on other sites More sharing options...
Angel OD Posted February 20, 2012 Author Share Posted February 20, 2012 Another boring update for you guys. I'm in the middle of figuring out where everything goes in this case. Since this is the build with the most room I've done, I actually thought it was going to be a breeze to just throw everything in there... Boy was I wrong... But just because I'm lying on the floor staring at the case, does not mean you shouldn't have something to look at. Since I need 2 pumps for this build, and only have money for a single Laing DDC I decided to bring in an oldie! Some might already have guessed where this is going if you have seen my WaterCooled CarPC, and the rest of you... I guess you will find out! The first babysteps, to make sure I can get started measuring everything for the re-build! That's it for now! Always leave them wanting more! C ya soon amigos! Quote Link to comment Share on other sites More sharing options...
tom1 Posted February 21, 2012 Share Posted February 21, 2012 nice idea Quote Link to comment Share on other sites More sharing options...
Angel OD Posted February 21, 2012 Author Share Posted February 21, 2012 nice idea Thanks man! I just hope it works this time. I'm something like 50/50 between modding pumps and killing them! But I decided to try again! The last one works perfectly in my car! Quote Link to comment Share on other sites More sharing options...
tom1 Posted February 22, 2012 Share Posted February 22, 2012 Good now work work work work work work , i'm curious to see it Quote Link to comment Share on other sites More sharing options...
Angel OD Posted February 22, 2012 Author Share Posted February 22, 2012 Good now work work work work work work , i'm curious to see it Thanks! So am I sir, So am I! I have so many things I work on at the moment, so I can't be bothered to finish one thing before I start a new one. Damn this brain of mine! Quote Link to comment Share on other sites More sharing options...
Angel OD Posted February 22, 2012 Author Share Posted February 22, 2012 Good now work work work work work work , i'm curious to see it Thanks! So am I sir, So am I! I have so many things I work on at the moment, so I can't be bothered to finish one thing before I start a new one. Damn this brain of mine! Quote Link to comment Share on other sites More sharing options...

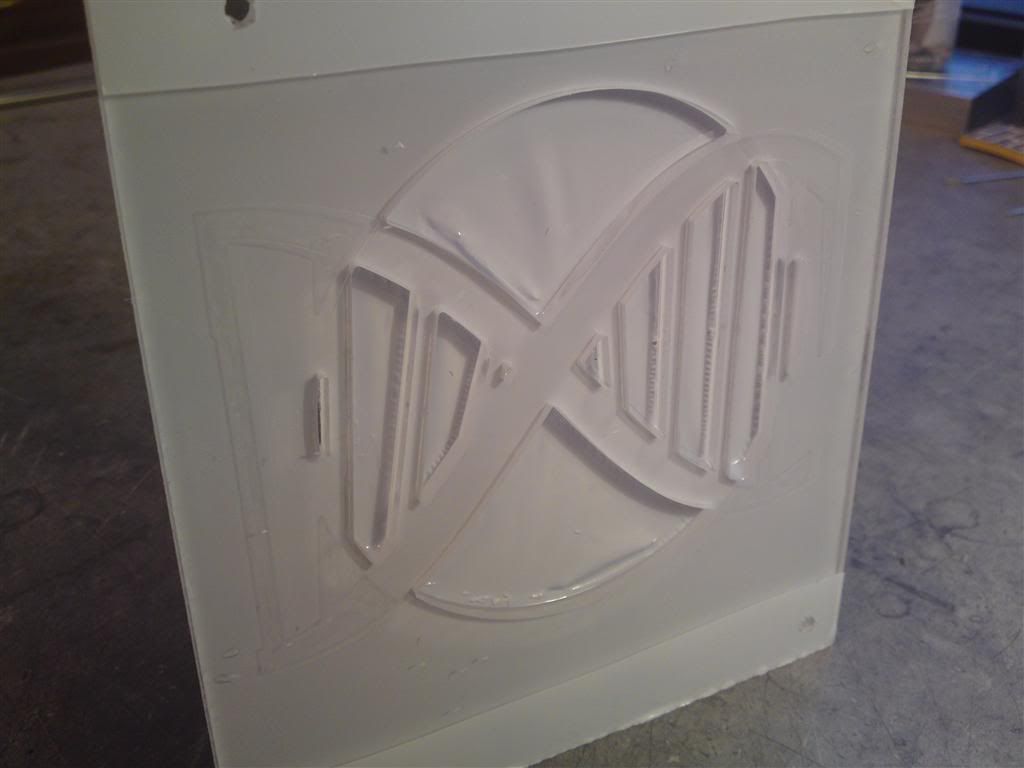

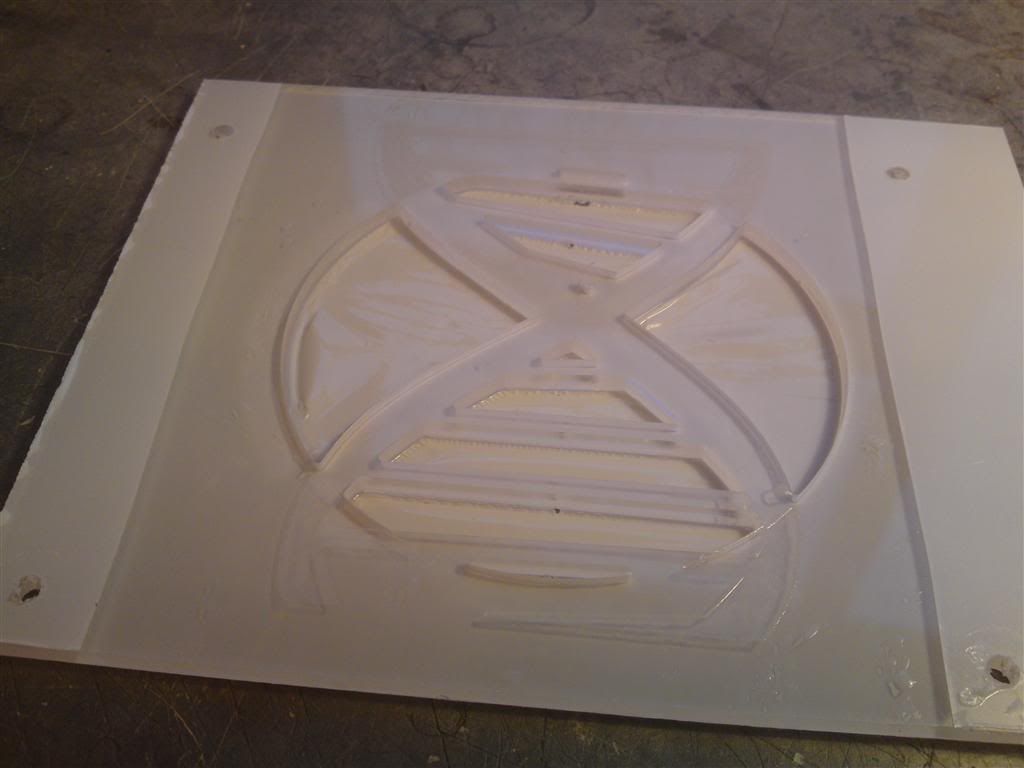

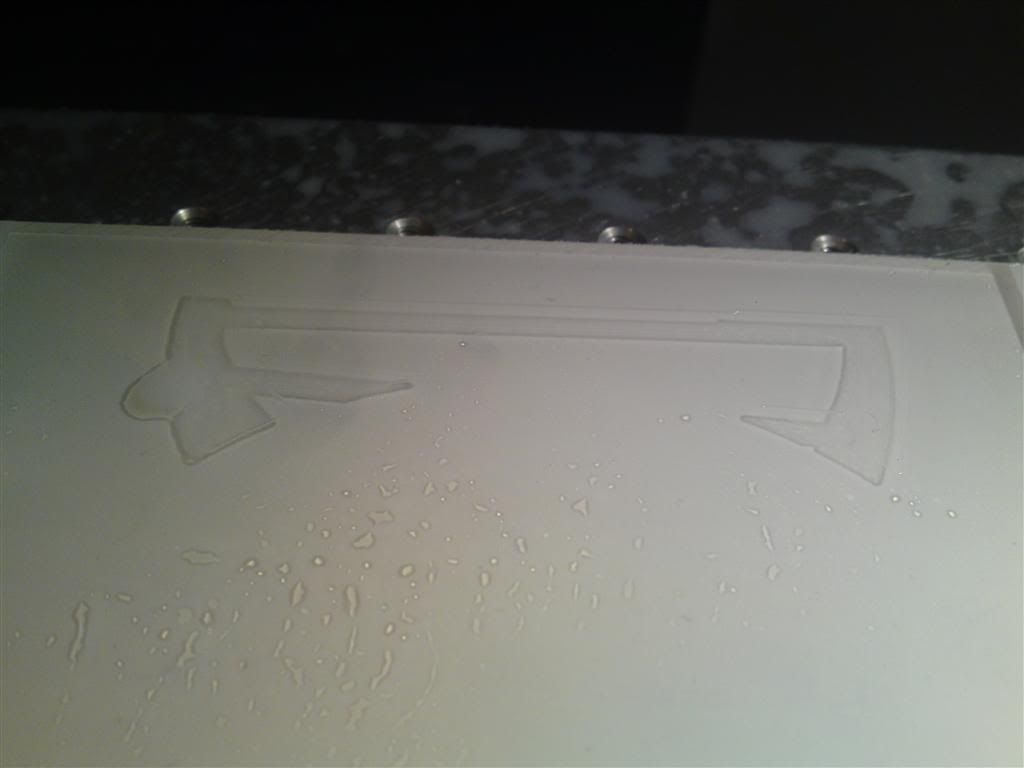

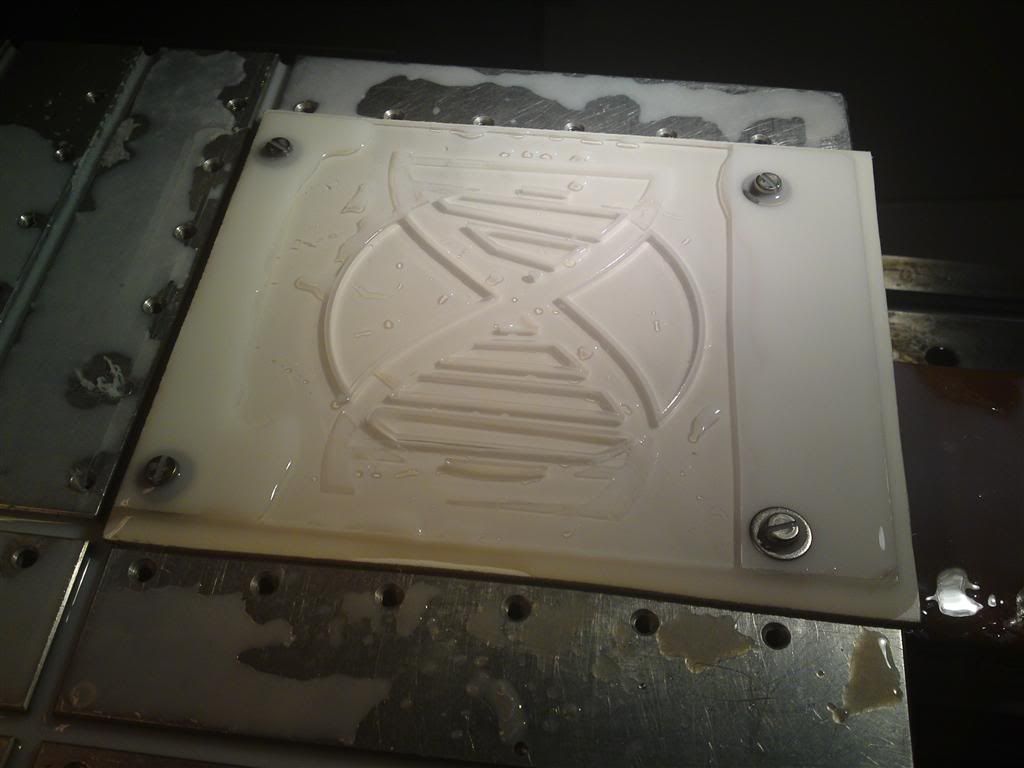

Angel OD Posted February 22, 2012 Author Share Posted February 22, 2012 I decided it was about time to take your dirty dirty minds away from the pump. I've been thinking about a design for rad-grills for a while, and the final design is done. I was not really sure wether it would hold up in the mill without any support structure to clamp it down on the whole surface, but I decided to give it a go today. I started with the 120mm grill, as it was the easiest/fastest to mill! It turned out to work fine, and all my fears were put to shame! On with it: The first milling: Gone through were it's supposed to: Milling done: And the leftover pieces taken out: Looks might deceive as the ripples are not the plexi but the protective film. I'll keep that on until I'm done milling the outline! C ya soon guys! Quote Link to comment Share on other sites More sharing options...
